Product
產品中心
螺桿工頻空壓機系列
BK經濟系列螺桿空壓機
聯系電話：18966308566
產品參數
| 產品型號 | 排氣壓力（Mpa) | 排氣量m3/min | 電機功率(KW) | 排氣接口 | 噪聲dB(A) | 工頻機組重量(KG) | 外形尺寸 | 變頻機組重量 | 變頻機組外型尺寸 |

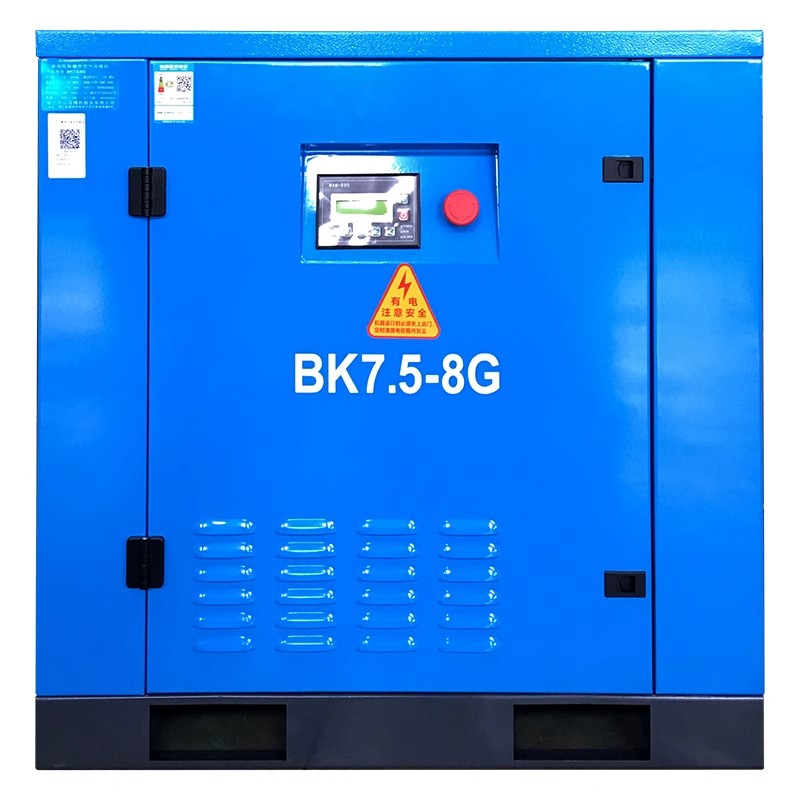

| BK7.5-8G | 0.8 | 1.2 | 7.5 | G3/4 | 72 | 200 | 800×620×800 | 200 | 800×620×800 |
| BK7.5G-8 | 0.8 | 1.2 | 7.5 | G3/4 | 72 | 200 | 880×510×800 | / | / |
| BK11-8G | 0.8 | 1.7 | 11 | G1 | 72 | 265 | 1000×670×1090 | 300 | 1000×670×1090 |
| BK11-8 | 0.8 | 1.7 | 11 | G1 | 72 | 290 | 700×670×1250 | 300 | 805×720×1250 |
| BK11-10 | 1 | 1.5 | 11 | G1 | 72 | 290 | 700×670×1250 | 300 | 805×720×1250 |
| BK11-13 | 1.3 | 1.2 | 11 | G1 | 72 | 290 | 700×670×1250 | 300 | 805×720×1250 |
| BK15-8G | 0.8 | 2.4 | 15 | G1 | 73 | 280 | 1000×670×1090 | 300 | 1000×670×1090 |
| BK15-8 | 0.8 | 2.4 | 15 | G1 | 73 | 290 | 700×670×1250 | 300 | 805×720×1250 |
| BK15-10 | 1 | 2.2 | 15 | G1 | 73 | 290 | 700×670×1250 | 300 | 805×720×1250 |
| BK15-13 | 1.3 | 1.7 | 15 | G1 | 73 | 290 | 700×670×1250 | 300 | 805×720×1250 |
| BK18-8G | 0.8 | 3 | 18.5 | G1 | 74 | 380 | 1200×800×1120 | 400 | 1200×800×1120 |
| BK18-10G | 1 | 2.7 | 18.5 | G1 | 74 | 380 | 1200×800×1120 | 400 | 1200×800×1120 |
| BK22-8G | 0.8 | 3.6 | 22 | G1 | 74 | 400 | 1200×800×1120 | 420 | 1200×800×1120 |
| BK22-10G | 1 | 3.2 | 22 | G1 | 74 | 400 | 1200×800×1120 | 420 | 1200×800×1120 |
| BK22-13G | 1.3 | 2.7 | 22 | G1 | 74 | 400 | 1200×800×1120 | 420 | 1200×800×1120 |
| BK30-8G | 0.8 | 5 | 30 | G1? | 75 | 550 | 1340×850×1330 | 580 | 1340×850×1330 |
| BK30-10G | 1 | 4.4 | 30 | G1? | 75 | 550 | 1340×850×1330 | 580 | 1340×850×1330 |
| BK30-13G | 1.3 | 3.6 | 30 | G1? | 75 | 550 | 1340×850×1330 | 580 | 1340×850×1330 |
| BK37-8G | 0.8 | 6 | 37 | G1? | 76 | 570 | 1340×850×1330 | 620 | 1340×850×1330 |
| BK37-10G | 1 | 5.5 | 37 | G1? | 76 | 570 | 1340×850×1330 | 620 | 1340×850×1330 |
| BK37-13G | 1.3 | 4.6 | 37 | G1? | 76 | 570 | 1340×850×1330 | 620 | 1340×850×1330 |
| BK45-8G | 0.8 | 7.1 | 45 | G1? | 78 | 740 | 1480×1030×1365 | 800 | 1480×1030×1365 |
| BK45-8 | 0.8 | 7.1 | 45 | G1? | 78 | 820 | 1240×1030×1595 | 880 | 1240×1095×1595 |
| BK45-10 | 1 | 6.5 | 45 | G1? | 78 | 820 | 1240×1030×1595 | 880 | 1240×1095×1595 |
| BK45-13 | 1.3 | 5.6 | 45 | G1? | 78 | 820 | 1240×1030×1595 | 880 | 1240×1095×1595 |
| BK55-8G | 0.8 | 10 | 55 | G1? | 80 | 800 | 1480×1030×1365 | 870 | 1480×1030×1365 |
| BK55-8 | 0.8 | 9.5 | 55 | G1? | 80 | 1200 | 1545×1200×1470 | 1270 | 1845×1200×1465 |
| BK55-10 | 1 | 8.5 | 55 | G1? | 80 | 1200 | 1545×1200×1470 | 1270 | 1845×1200×1465 |
| BK55-13 | 1.3 | 7.4 | 55 | G1? | 80 | 1200 | 1545×1200×1470 | 1270 | 1845×1200×1465 |
| BK75-8GH | 0.8 | 13 | 75 | G2 | 81 | 1200 | 1800×1190×1710 | 1280 | 1800×1190×1710 |
| BKL90-8GH | 0.8 | 16 | 90 | G2 | 81 | 1230 | 1800×1190×1710 | 1300 | 1800×1190×1710 |
| BK110-8T | 0.8 | 21 | 110 | DN65 | 82 | 1700 | 2100×1230×1730 | / | / |
| BK110-8GH | 0.8 | 21 | 110 | DN65 | 82 | 1700 | 2100×1230×1730 | 1850 | 2700×1230×1730 |
| BK132-8T | 0.8 | 24 | 132 | DN65 | 82 | 2100 | 2100×1230×1730 | / | / |
| BKL132-8GH | 0.8 | 24 | 132 | DN65 | 82 | 2100 | 2100×1230×1730 | 1920 | 2700×1230×1730 |
| 帶G為直聯傳動方式，其他為皮帶傳動方式。 |
